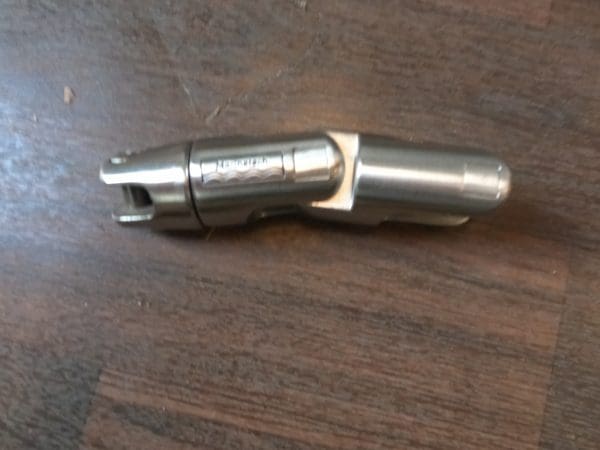

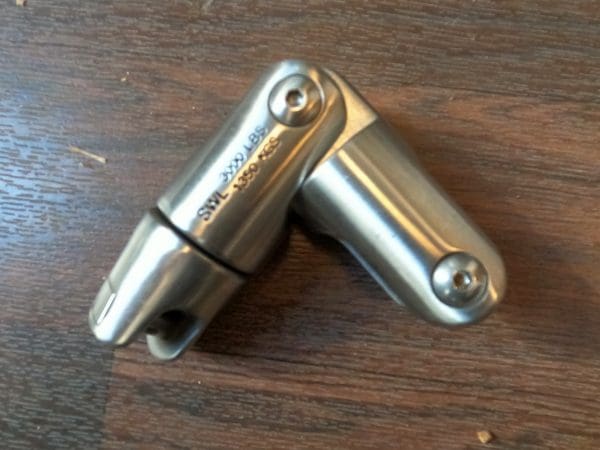

Anchor chain swivel with joint


Anchor chain swivel with joint


Out of stock



Technical data

  • Diameter (D) : 28mm
  • For chain-Ø : 6mm, 8mm
  • Inside width (iB) : 16mm
  • Inside width 1 (iB1) : 9mm
  • Length (L) : 134mm
  • Material-diameter (ø) : 10mm
  • Material-diameter 1(ø1) : 7.5mm
  • Breaking load KG : 3290kg
  • Safe working load KG: 1350kg
  • Easy to pull anchor over the bow roller
  • Captured pins will not loosen when under load
  • Pins can be removed by using a hex key 4mm
  • Screw glue on screws is required by installation

Material : Stainless steel A4 – AISI 316

This item is brand new and unused.

Free shipping to mainland UK.
