Quick Dylan H – DH4 Windlass -No Motor

£250.00

Windlass

1 in stock



Description

Manufacturers Description

  • Vertical windlasses
  • Base in anodized aluminium in hard oxide
  • with and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for
    chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor (1500-1700W)
  • IP66 watertight motor (2000W)
  • Anodized aluminium gearbox
FOR BOATS FROM 10 TO 20 METERS (33 – 66 FT)
DH4 1500 W 10 – 16 m 33 – 53 ft
DH4 1700 W 12/24 V 14 – 18 m 46 – 59 ft
DH4 2000 W 24 V – 230/400 VAC 15 – 20 m 49 – 66 ft
DH4 HYDRO 15 – 20 m 49 – 66 ft

The indication may vary according to the boat type and the anchor-rode type

Gypsy and Drum Ø 142 mm / 5″ 19/32
GYPSY 10 mm – 3/8″ 12/13 mm
CHAIN 10 mm 10 mm 3/8″ 13 mm 12 mm 7/16″
DIN 766 ISO G4 DIN 766 ISO G4
ROPE 5/8″ (15,8 mm) – 3/4″ (19 mm) 3/4″ (19 mm)

This item is for the windlass only with no motor.

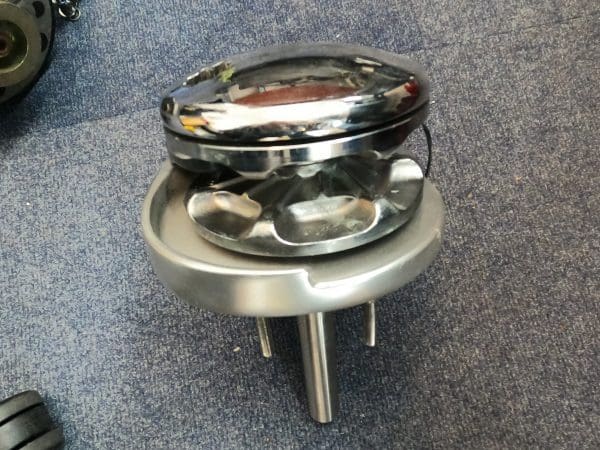

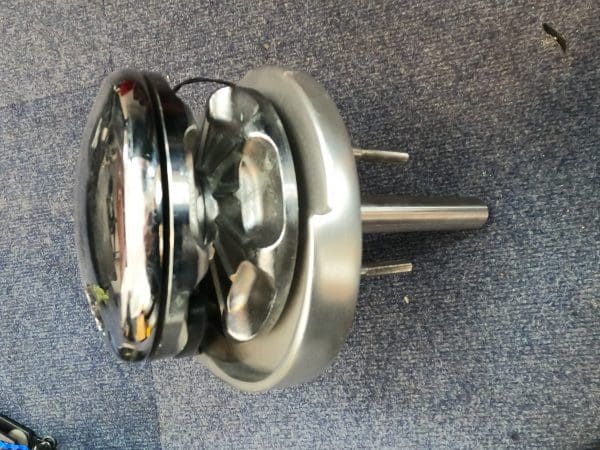

Condition as seen in the photos.

Free shipping to mainland UK.
